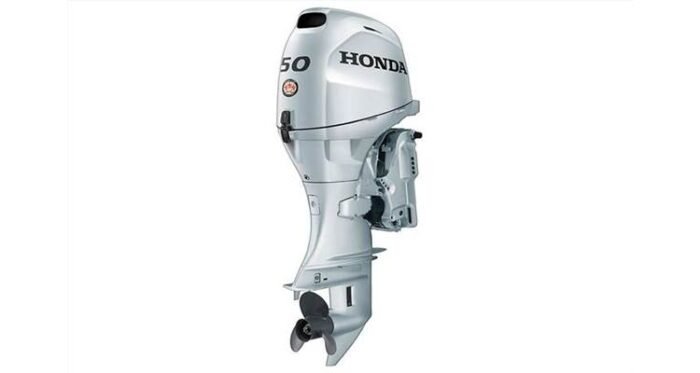

Honda BF50DK4LRTC Outboard Motor

Honda Marine BF50DK4LRTC L-Type, 20 in. Shaft
Three Cylinder, 20″ Long shaft, Blast™, Electric Start, Remote Steering, EFI, Power Tilt & Trim.Proven as both a commercial fishing engine and a recreational outboard, the BF50DK4LRTC L-Type, with a 20 in. shaft, is the lightest, most fuel efficient and best charging capacity engine in its class. You get exceptional performance thanks to Boosted Low Speed Torque (BLAST®) and Multi-Port Programmed Fuel Injection (PGM-FI®).
Performance and Efficiency
Honda’s Four-Stroke Engine Design: World-renowned Honda quality, proven reliability with no oil mixing.
Offset Crankshaft Design: Locates the powerhead directly over transom bracket pivot point for smoother operation of trim and tilt, as well as reducing stress on the transom and steering effort. Also, it reduces vibration and improves performance and handling. It also provides for a very compact design.
Non-Linear Mounting System: Patented non-linear mounting provides smoother operation at all engine speeds.
Reliability and Durability
Over-Rev Protection: Standard rev-limiter protects the engine from severe damage caused by over-revving.
Overheat and Low-Oil-Level Warning Systems: Standard overheat and low-oil warning systems offer peace of mind and protect your investment.
Fresh Water Flushport: Allows easy hook-up of a garden hose to flush debris and salt water out of the engine, extending the life of the outboard (optional Flush Kit required).
Sacrificial Anodes: The BF50DK4LRTC L-Type has 1 internal and 2 external sacrificial anodes to protect all metal components from corrosion.
Three-Year Warranty: The best outboards in the industry are backed by the best warranty in the business, 3 years parts and labour.
Convenience and Ease of Use
Light, Compact Design: Three-cylinder design allows for smooth operation while remaining compact.
Regulated, High-Output Charging System: A regulated, 22-amp charging system is standard on both electric-start models to ensure that batteries remain charged while operating electronics.
Built-in Pitot Tube: A Pitot tube is designed into the lower gearcase and allows a direct hook-up for your speedometer.
Standard Gauges, Propeller and Control Box: Tachometer, trim gauges, aluminum propeller and a high-quality, side-mount control box are included with Power Tilt and Trim models.
Standard Fuel Tank, Hose and Propeller: A 25-litre fuel tank, fuel hose and aluminum propeller are included as standard equipment.
Engine
Type: 4-Stroke SOHC; 3 Cylinders / 6 Valves
Displacement: 49.4 cubic in. (808 cc)
Bore & Stroke: 2.76 x 2.76 in. (70 mm x 70 mm)
Full Throttle RPM Range: 5,500-6,000 RPM
Propshaft Rated Horsepower: 50 HP @ 5,750 RPM
Cooling System: Water Cooled
Fuel Delivery: Programmed Electronic Fuel Injection (PGM-FI)
Recommended Fuel: Unleaded Gas. (Min. Pump Octane 86)
Ignition System: MicroComputer Programmed
Starting System: Electric
Exhaust: Through Prop Hub
Lubrication: Pressure Lubrication (Trochoid pump)
Recommended Oil: SAE 5W30 API service classification SJ or later
Oil Capacity: 1.85 Imp. qt (2.10 L) with oil filter repl.
Trim Range: -4 deg. to +12 deg.
Tilt Range: 63 deg.
Steering Angle: 35 deg.
Drive
Gear Ratio: 2.08:1
Gear Shift: F-N-R
Equipment
Alternator: 22 amp / 275 watts
Battery Charging Power: 17 amp
Power Trim & Tilt: Standard
Oil Pressure Alert: Standard
Over Rev-Limiter: Standard
Temperature Alert: Standard
Battery Condition Alert: Standard
Speedometer Pickup: Standard
Variable Speed Trolling Kit: Optional
Dimensions
Overall Width: 14.6 in. (372 mm)
Transom Height: 21.9 in. (556 mm)
Propeller
Propeller Type: 3-blade (Aluminum)
Propeller Diameter x Pitch: 11-1/4 x 13 in.
Dry Weight
LRTC-Type: 216.1 lbs. (98 kg)
Warranty
Standard Warranty: As a testament to their quality and reliability, all Honda marine engines come with a warranty of 36 months for non-commercial use and 12 months for commercial use.
Honda Plus Extended Warranty: Honda Plus extended warranty is now available for your marine engine. You can prolong your worry-free pleasure on specified parts and components even further.
